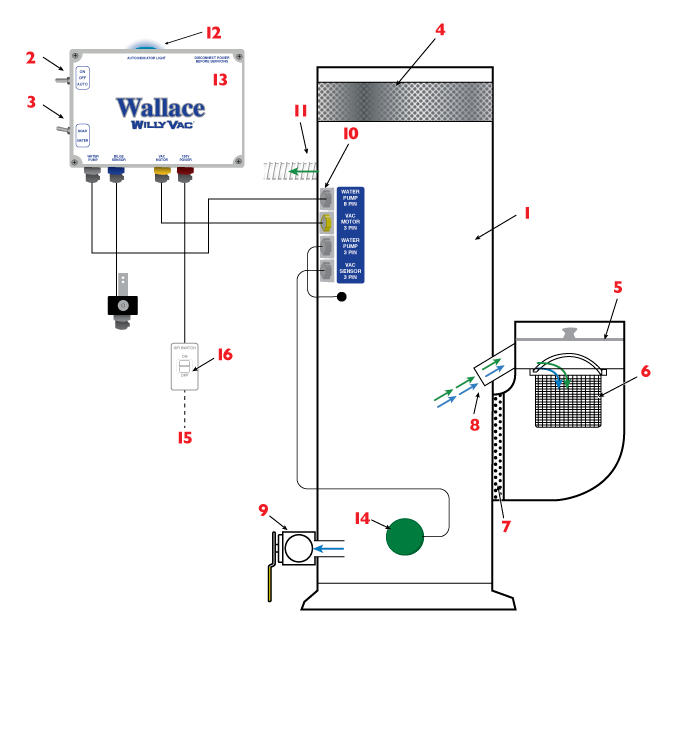

Plumbing and Wiring Overview

  1. Willy Vac Housing
  2. ON/OFF/AUTO
  3. Water/Soap Switch
  4. Ventilation Grill
  5. Lid
  6. Strainer Basket
  7. Perforated Wall
  8. Inlet (Water and Air)
  9. Diverter Valve and Water Outlet
  10. Electrical Connections
  11. Air Outlet Fitting
  12. Auto Blue Light
  13. Control Box
  14. Vac Sensor
  15. Boat Wiring 120V A/C, 20 AMP Supply
  16. GFI
